What Is the Maximum Weight a Railway Track Can Support?

The maximum weight a railway track can support depends on various factors, including the type of track, the condition of the track, the design of the rail and sleepers, and the underlying foundation. Here are some key considerations regarding the weight capacity of railway tracks:

• Track Classification: Railway tracks are classified based on their weight-bearing capacity. The classification system varies between countries, but it generally includes classes such as Class A, Class B, Class C, and so on. Each class represents a specific weight capacity, which is determined by the track's design and construction.

• Rail Type: The type of rail used in the track affects its weight capacity. Rail profiles come in different shapes and sizes, such as flat-bottomed rails, bullhead rails, and vignole rails. These rails are made of steel and have different load-bearing capabilities. Heavier and sturdier rail profiles can generally support greater weights.

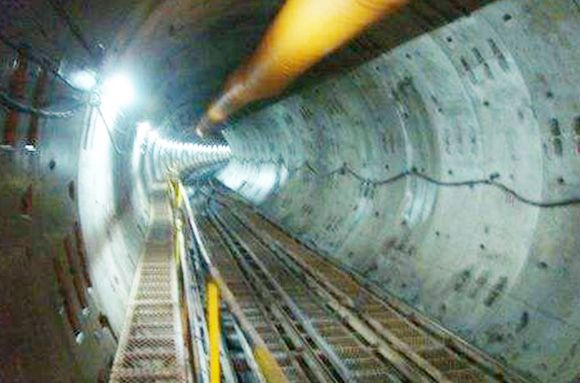

 Tunnel Construction

• Sleepers or Ties: The sleepers, also known as ties, are the horizontal beams that support the rails and distribute the load. The type of sleepers used, such as wooden, concrete, or steel, impacts the track's weight capacity. Concrete sleepers are generally stronger and can handle higher loads compared to wooden sleepers.

• Ballast: The ballast is the layer of crushed stones or gravel placed beneath the sleepers to provide stability and drainage. It plays a crucial role in distributing the load from the trains to the underlying foundation. Well-compacted and properly maintained ballast enhances the track's weight-bearing capacity.

• Foundation: The strength and stability of the foundation on which the railway track is built are crucial for supporting heavy loads. The foundation typically consists of compacted soil or other materials like concrete. The ability of the foundation to withstand the load depends on factors such as soil quality, compaction, and drainage.

• Axle Load: The weight capacity of a railway track is often expressed in terms of the maximum permissible axle load. Axle load refers to the weight borne by a single wheel axle on a train. Different track classifications have specific limits on the maximum axle load they can accommodate. This helps ensure that the total weight of the train is distributed evenly across the track.

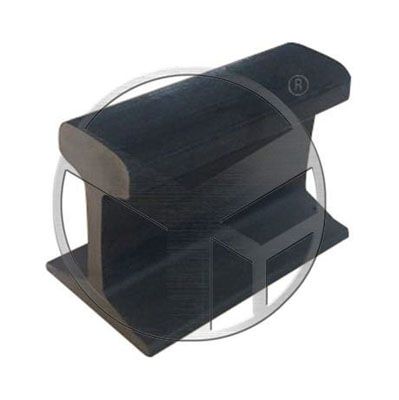

Steel Rail

• Maintenance and Inspection: Regular maintenance and inspections are essential to monitor the condition of the track and ensure its weight-bearing capacity. Inspections include checking for defects, wear and tear, and monitoring track alignment. Proper maintenance practices help identify and address issues that could compromise the track's ability to support heavy loads.

• Dynamic Loads: In addition to static loads, railway tracks must also withstand dynamic loads caused by moving trains. Dynamic loads are the forces exerted on the track due to the train's weight, speed, and acceleration. The track must be designed and maintained to handle these dynamic forces to ensure safe and reliable operation.

• Engineering Standards: Railway tracks are built according to engineering standards and regulations specific to each country or region. These standards define the required design specifications, materials, construction methods, and safety factors to ensure tracks can safely support the anticipated loads.

• Specialized Tracks: Certain railway tracks are designed to support exceptionally heavy loads. For example, tracks used for heavy freight transport or high-speed trains have enhanced weight-bearing capacities. These specialized tracks incorporate stronger rail profiles, reinforced sleepers, and robust foundations to accommodate the higher loads and speeds.

It's important to note that the weight capacity of railway tracks is not a fixed value but rather a range based on various factors. Engineering assessments, calculations, and regular monitoring are essential to ensure that the track remains within its permissible weight limits and maintains safety standards for train operations.
